Related Products

Products for Use with Planova™ Filters

A variety of related products for Planova, including prefilters, integrity test kits and equipment for automated filtration and integrity testing.

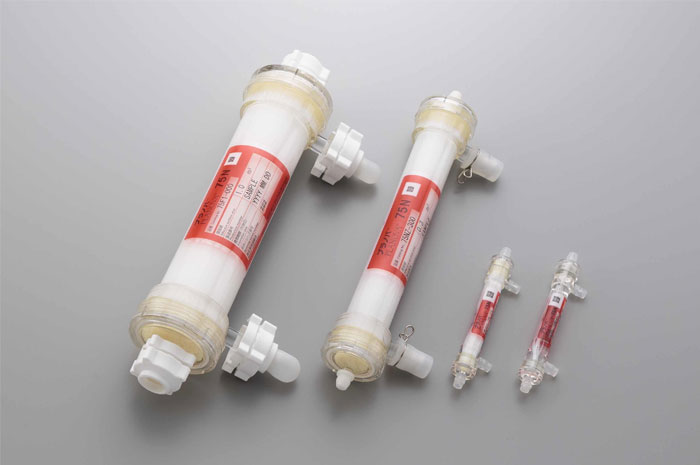

Planova™ 75N Prefilters

Regenerated cellulose membrane for removing impurities and aggregated proteins from feed streams prior to virus removal filtration. Planova 75N prefilters are not virus removal filters and are available in sizes suitable for lab scale to manufacturing scale applications.

Planova 75N Prefilters

Ordering Information

Planova 75N prefilter sizes and catalog numbers. Please reference the catalog number when placing orders.

Filter type	Effective surface area (m²)	Catalog number
Planova 75N prefilter	1.0	75F1-000
	0.3	75NZ-300
	0.01	75NZ-010
	0.001	75NZ-001

Place Order

Filter Adapters

Stainless steel header and coupler adapters are available to support connections of 0.3 and 0.12 m²Planova 15N, 20N, 35N and 75N* filters.
* Planova 75N is not available in 0.12 m²

Header and Coupler

Ordering Information

Module header and coupler and catalog numbers. Please reference the catalog number when placing orders.

Accessory type	Applicable Planova filter size	Catalog number
Module header (B)	0.3, 0.12 m²	HEADER-B2
Module coupler	0.3, 0.12 m²	COUPLER-01

Place Order

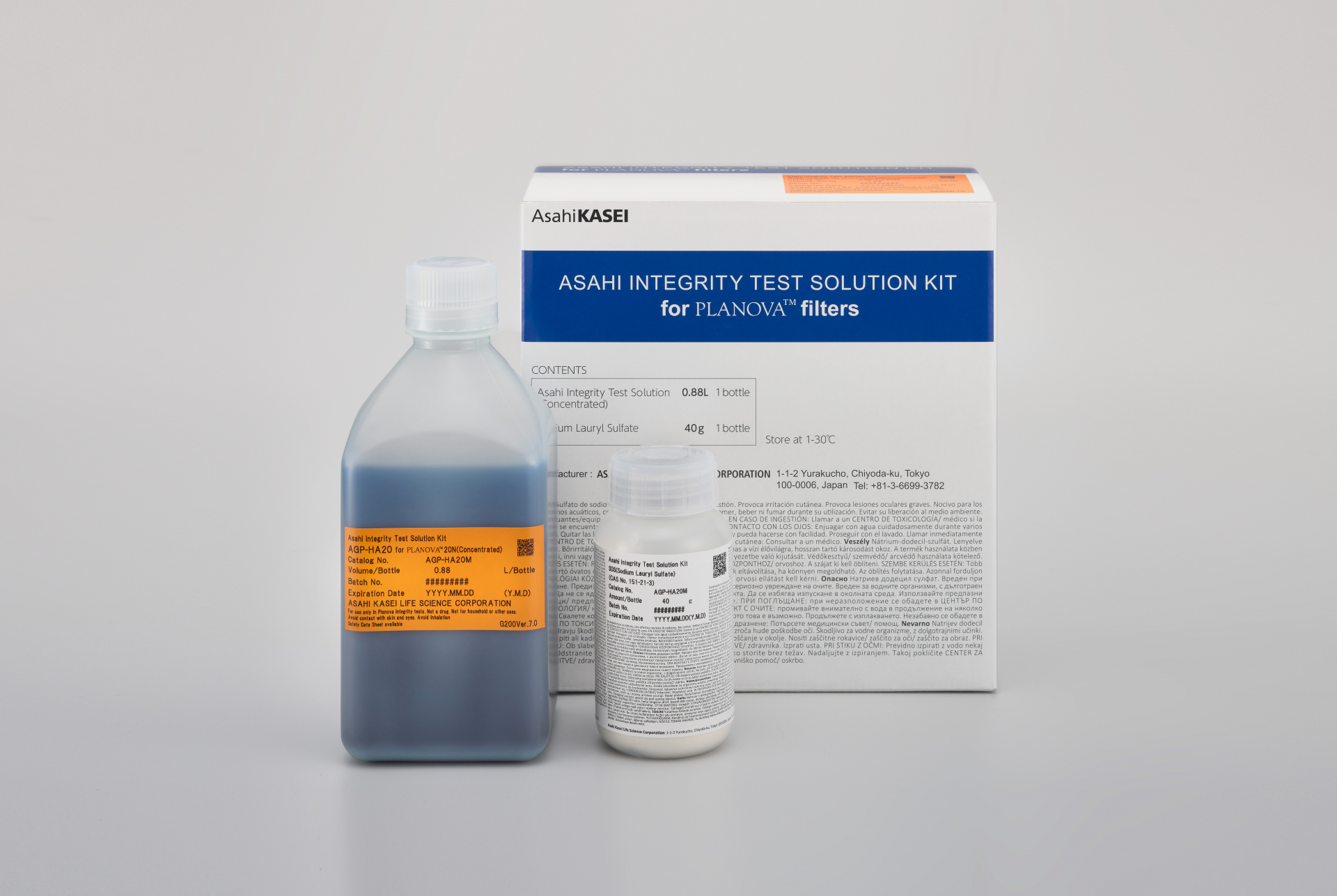

Asahi Integrity Test Solution Kits

Asahi Integrity Test Solution Kits are used for the post-use gold particle test (GPT) of Planova 15N, 20N and 35N filters.

Ordering Information

Asahi Integrity Test Solution Kit sizes and catalog numbers. Please reference the catalog number when placing orders.

Kit type	Volume (L)	Catalog number
AGP-HA15	0.88	AGP-HA15M
AGP-HA15	0.11	AGP-HA15S
AGP-HA20	0.88	AGP-HA20M
AGP-HA20	0.11	AGP-HA20S
AGP-HA35	0.88	AGP-HA35M
AGP-HA35	0.11	AGP-HA35S

Place Order

Planova™ Leak Tester

Provides an automated option for the pre-use and post-use leakage test of Planova 15N, 20N, 35N, 75N, BioEX, FG1 and S20N filters with an effective surface area of 0.1 m² or larger.
